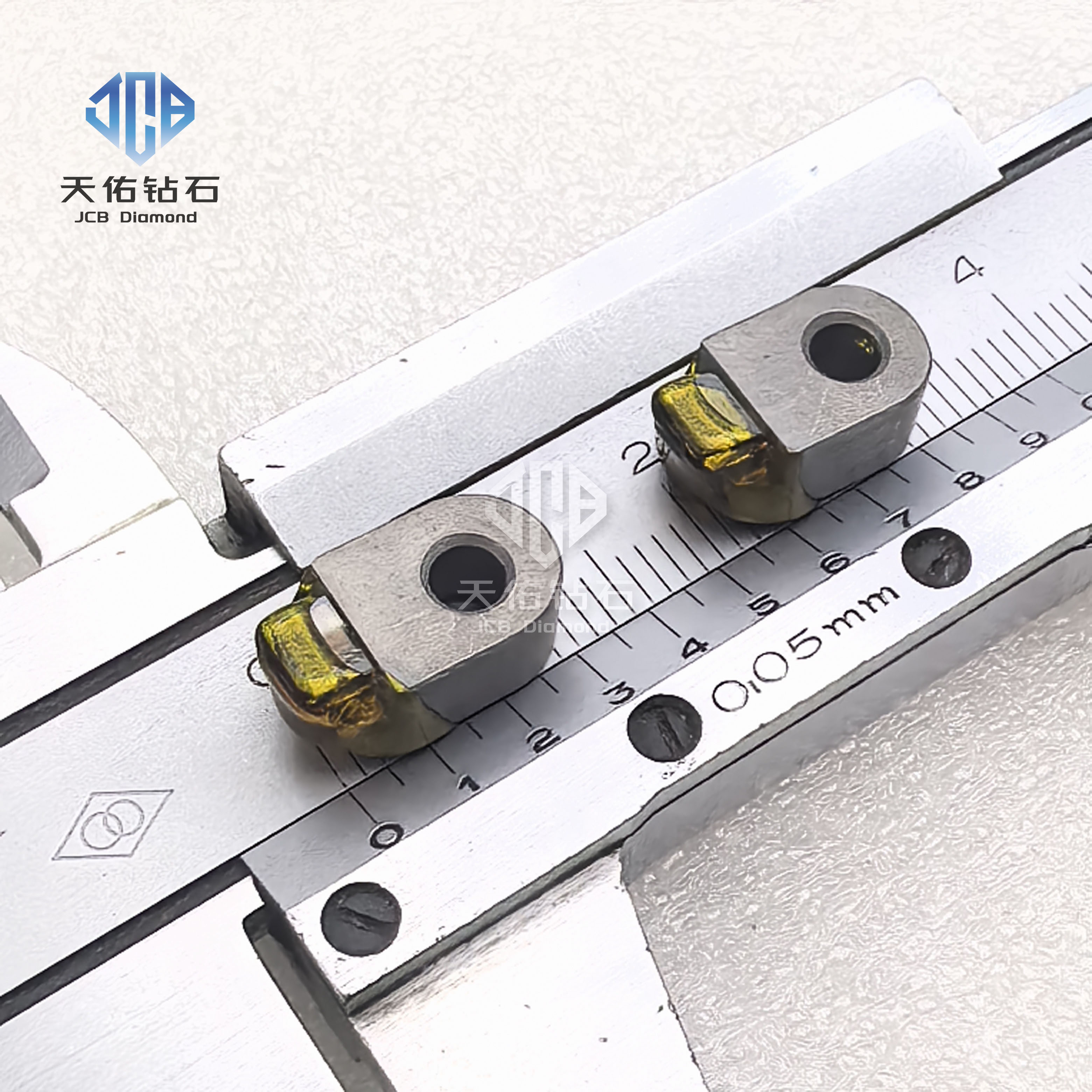

Name: Inserto de diamante monocristalino para acabado espejo en aluminio y acrílico
Brand: Henan JCB Superhard Material Co.,Ltd
Rating: 4.7 (19 reviews)

Inserto de diamante monocristalino para acabado espejo en aluminio y acrílico

Cantidad de pedido mínima:1

Atributos del producto
Embalaje y entrega

Atributos del producto

Modelo: 4.0-180º

Embalaje y entrega

Key Selling Points	Notes
Single Crystal Structure	Uniform crystal structure with no internal grain boundaries enables sharper edge and superior surface quality compared to PCD tools.
Atomic-Level Sharp Cutting Edge	MCD’s homogeneous structure allows the cutting edge to be ground to theoretically atomic-level sharpness, providing extremely low cutting force and minimal burr formation.
Mirror Surface Finish Achievable	After precision grinding, the finished workpiece surface can reach Ra 0.005–0.01μm — a mirror-grade finish that eliminates or minimizes expensive secondary polishing operations.
HPHT Synthetic Diamond Material	Produced via high-pressure high-temperature synthesis, delivering superior thermal conductivity, wear resistance, and batch-to-batch consistency, graded as flawless or with minimal inclusions (Grade 1/2/3).
Laser-Profiled Cutting Edges	High-precision laser profiling ensures tight tolerance control, with a honed edge profile optimized for short-chipping non-ferrous metals.
Resharpenable Design	Unlike PCD tools which have limited regrinding potential due to binder layer constraints, MCD inserts can be professionally reground multiple times, dramatically reducing long-term tooling costs.
Excellent for Precision Parts	Widely used in aerospace, optical, 3C electronics, and medical device industries — anywhere demanding mirror finishes and tight tolerances are required.
Customizable Geometry	Edge angles, tip radius, precision grades, and shank specifications can all be tailored to your specific machine and application.
